The UCD3138RHAR is a 32KB non-volatile memory power management IC with 18 GPIOs and 8 outputs. It is packaged in a VQFN EP package, measuring 6mm in length and 0.9mm in height. The device operates over a temperature range of -40°C to 125°C and is RoHS compliant. The IC has a maximum operating supply current of 100mA and a maximum duty cycle of 50%. It is available in a tape and reel packaging format with 2500 units per package.
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD3138RHAR technical specifications.
General
| Package/Case | VQFN EP |
| Fall Time | 300ns |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Non-volatile Memory Size | 32KB |
| Number of GPIO | 18 |
| Number of Outputs | 8 |
| Operating Supply Current | 100mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCD3138RHAR Datasheet
Download the complete datasheet for Texas Instruments UCD3138RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

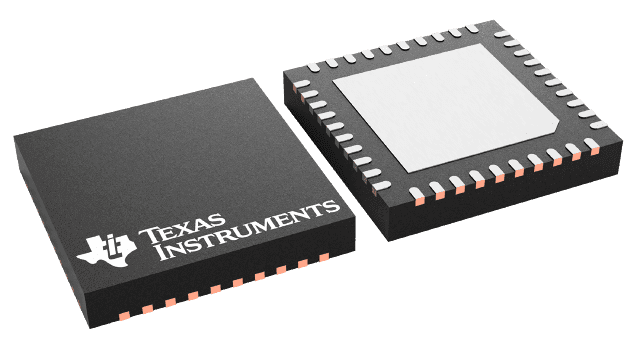

Product Images
