Texas Instruments
UCD7230RGWT
15.5 V, 2 MHz, 4 A synchronous buck MOSFET™ driver compatible with UCD92xx digital PWM controllers 20-VQFN 0 to 0
Frequency2MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments UCD7230RGWT technical specifications.
General
Package/Case
VQFN
Element Configuration
Dual
Lead Free
Contains Lead
Max Frequency
2MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Number of Outputs
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Weight
0.002469oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCD7230RGWT Datasheet
Download the complete datasheet for Texas Instruments UCD7230RGWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

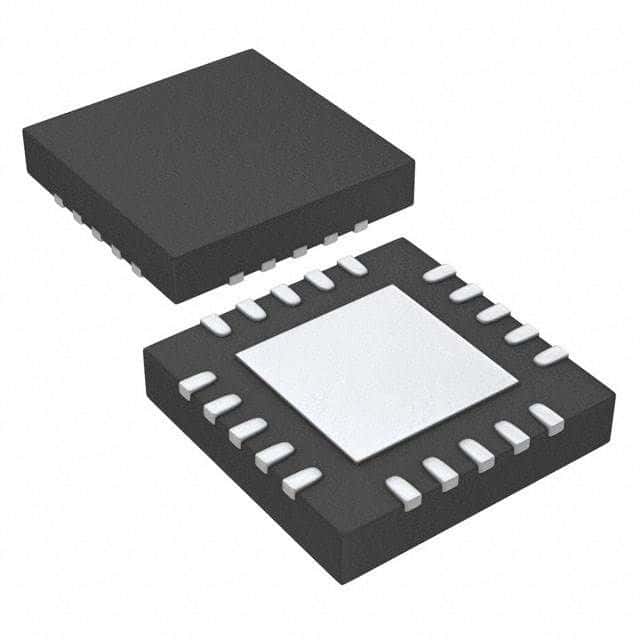

Product Images
