12-rail power supply sequencer and monitor, featuring ACPI support. This integrated circuit offers 12 monitored voltages and 12 outputs, operating from a 3V to 3.6V supply with a typical 3.3V operating voltage. Designed for surface mount applications, it is housed in a 9mm x 9mm x 1mm VQFN EP package, operating across a -40°C to 125°C temperature range. Includes a watchdog timer and active high/low reset with a 2µs reset timeout.
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD90120ARGCR technical specifications.
General
| Package/Case | VQFN EP |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 12 |
| Number of Voltages Monitored | 12 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 50mA |
| Radiation Hardening | No |
| Reset | Active High/Active Low |
| Reset Timeout | 2us |
| RoHS Compliant | Yes |
| Series | UCD90120A |
| Thickness | 880um |
| Type | Sequencer |
| Watchdog Timer | Yes |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCD90120ARGCR Datasheet
Download the complete datasheet for Texas Instruments UCD90120ARGCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

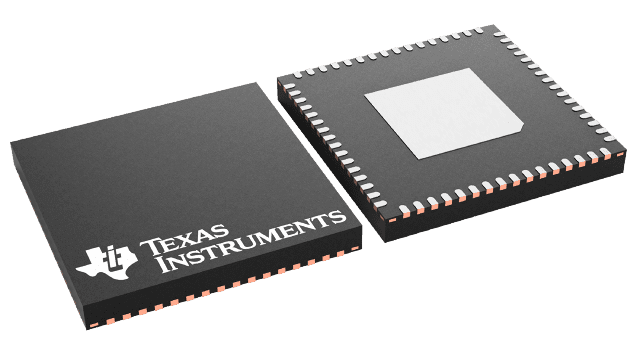

Product Images
