Texas Instruments
UCD90120ARGCT
12-Rail Power Supply Sequencer and Monitor with ACPI Support 64-VQFN -40 to 125
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD90120ARGCT technical specifications.
General
| Package/Case | VQFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 12 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 50mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active High/Active Low |
| Reset Timeout | 2us |
| RoHS Compliant | Yes |
| Series | UCD90120A |
| Type | Sequencer |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCD90120ARGCT Datasheet
Download the complete datasheet for Texas Instruments UCD90120ARGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

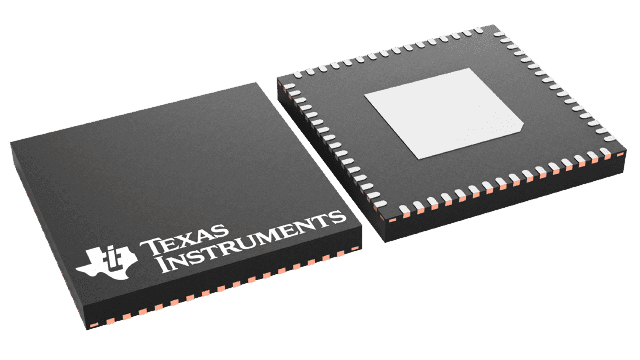

Product Images
