12-channel power sequencing and system health monitoring IC, featuring 12 voltage monitoring channels. Operates from a 3V to 3.6V supply voltage with a typical operating supply current of 8mA and a maximum of 55mA. Offers push-pull output type and includes a watchdog timer. Packaged in a 64-VQFN surface mount configuration, this component operates within a temperature range of -40°C to 110°C and is RoHS compliant.
PackageVQFN
Current55mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD90120RGCT technical specifications.
General
Package/Case
VQFN
Lead Free
Lead Free
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Current
55mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Voltages Monitored
12
Operating Supply Current
8mA
Operating Supply Voltage
3.3V
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
50mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active High/Active Low
Reset Timeout
2us
RoHS Compliant
Yes
Series
UCD90120
Supply Current
55mA
Type
Sequencer
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCD90120RGCT Datasheet
Download the complete datasheet for Texas Instruments UCD90120RGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

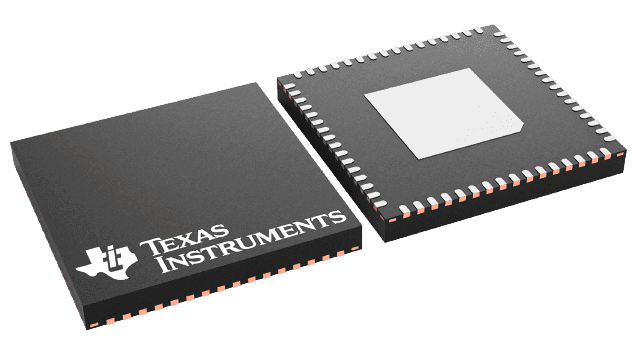

Product Images
