Texas Instruments
UCD9244RGCR
2 MHz, 4 rail, 4 phase digital PWM buck controller with 4/6/8-bit parallel VID 64-VQFN -40 to 125
PackageVQFN
Current8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD9244RGCR technical specifications.
General
Package/Case
VQFN
Height
0.88mm
Lead Free
Lead Free
Length
9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
4
Operating Supply Current
8mA
Operating Supply Voltage
3.3V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
8mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCD9244RGCR Datasheet
Download the complete datasheet for Texas Instruments UCD9244RGCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

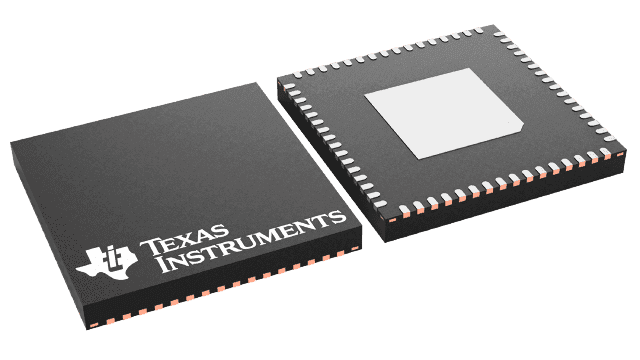

Product Images
