Quad-output DC/DC controller and regulator, operating at 2MHz, features a 4-output step-down configuration. Surface mountable in an 80-pin TQFP package, this component offers a 3V minimum and 3.6V maximum supply voltage, with an operating supply voltage of 3.3V. It supports a 3V output voltage and 6mA output current, with a maximum supply current of 55mA. Operating temperature range spans from -40°C to 125°C, and the device is RoHS compliant.
Frequency2MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD9248PFC technical specifications.
General
Package/Case
TQFP
Frequency
2MHz
Height
1mm
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
55mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
4
Operating Supply Current
8mA
Operating Supply Voltage
3.3V
Output Current
6mA
Output Voltage
3V
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Fusion Digital Power™
Weight
0.018117oz
Width
12.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCD9248PFC Datasheet
Download the complete datasheet for Texas Instruments UCD9248PFC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

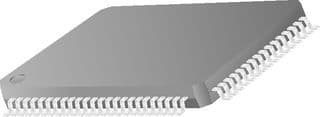

Product Images
