PackageSOIC
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Texas Instruments ULN2003AID technical specifications.
General
Package/Case
SOIC
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
1.6V
Height
1.58mm
Lead Free
Lead Free
Length
9.9mm
Max Collector Current
500mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Drivers
7
Number of Elements
7
Package Quantity
40
Packaging
Rail/Tube
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ULN2003AID Datasheet
Download the complete datasheet for Texas Instruments ULN2003AID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

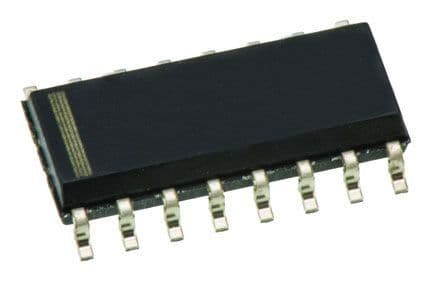

Product Images
