Seven-channel NPN Darlington transistor array, featuring a 50V collector-emitter breakdown voltage and a 500mA maximum collector current. This through-hole component offers a 1.1V collector-emitter saturation voltage and operates within a -20°C to 70°C temperature range. Packaged in a 16-pin PDIP, it supports a 50V DC rated voltage and is RoHS compliant.
PackagePDIP
Current Rating500mA
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Texas Instruments ULN2003AN technical specifications.
General
Package/Case
PDIP
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
1.6V
Current Rating
500mA
Emitter Base Voltage (VEBO)
50V
Height
4.57mm
Input Capacitance
15pF
Input Current
930uA
Lead Free
Lead Free
Length
19.3mm
Max Collector Current
500mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Power Dissipation
25W
Mount
Through Hole
Number of Channels
7
Number of Drivers
7
Number of Elements
7
Output Voltage
50V
Package Quantity
25
Packaging
Rail/Tube
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Thickness
3.9mm
DC Rated Voltage
50V
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ULN2003AN Datasheet
Download the complete datasheet for Texas Instruments ULN2003AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

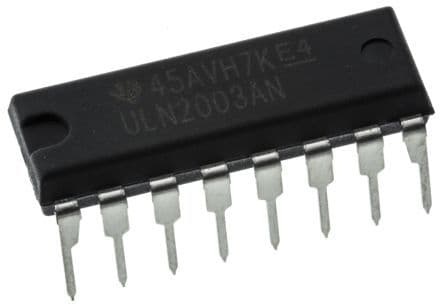

Product Images
