Seven-channel Darlington transistor array for surface mounting. Features 8V collector-emitter breakdown voltage and 500mA maximum collector current per channel. Operates with supply voltages from 1.8V to 5V, offering 140mA output current and 490mV collector-emitter saturation voltage. Packaged in a 16-pin SOIC with dimensions of 10mm length, 4mm width, and 1.5mm height. RoHS compliant with a maximum power dissipation of 580mW and an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ULN2003LVDR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

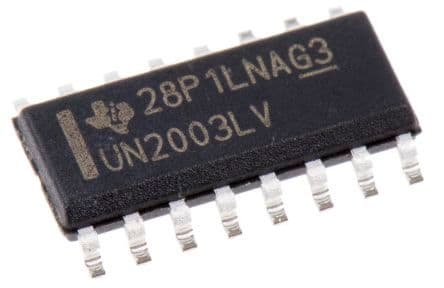

Texas Instruments ULN2003LVDR technical specifications.
| Package/Case | SOIC |
| Collector Emitter Breakdown Voltage | 8V |
| Collector Emitter Saturation Voltage | 490mV |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Breakdown Voltage | 8V |
| Max Collector Current | 500mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 580mW |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Drivers | 7 |
| Number of Elements | 7 |
| Output Current | 140mA |
| Output Voltage | 8V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 580mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4mm |
| RoHS | Compliant |
