Eight-channel NPN Darlington transistor array, surface mountable in an 18-SOIC package. Features a 50V collector-emitter breakdown voltage and a maximum collector current of 500mA per channel. Operates across a temperature range of -65°C to 85°C, with a collector-emitter saturation voltage of 1.1V. This RoHS compliant component is suitable for automotive applications.
PackageSOIC
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Texas Instruments ULN2803ADW technical specifications.
General
Package/Case
SOIC
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
1.6V
Height
2.35mm
Lead Free
Lead Free
Length
11.62mm
Max Collector Current
500mA
Max Operating Temperature
85°C
Min Operating Temperature
-65°C
Mount
Surface Mount
Number of Channels
8
Number of Drivers
8
Number of Elements
8
Output Voltage
50V
Package Quantity
40
Packaging
Rail/Tube
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Thickness
2.35mm
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ULN2803ADW Datasheet
Download the complete datasheet for Texas Instruments ULN2803ADW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

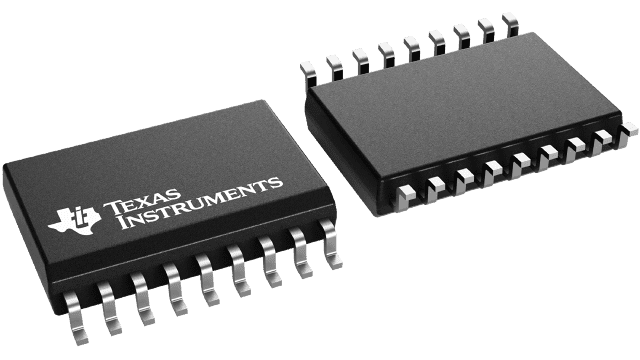

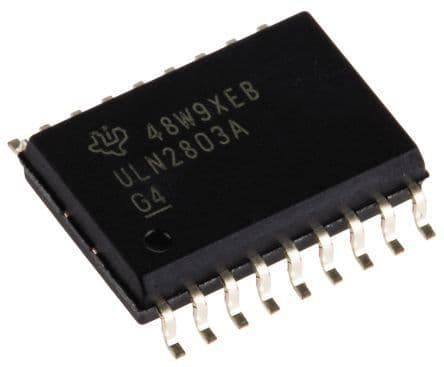

Product Images
