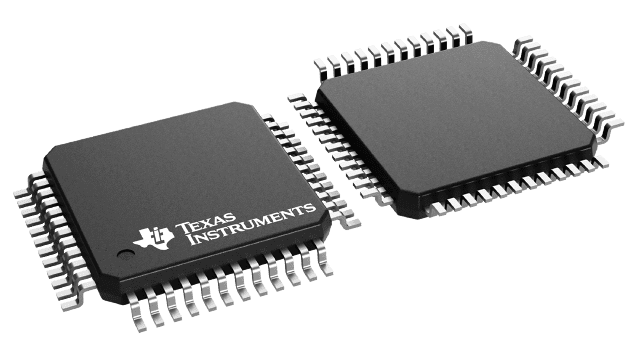

Dual variable-gain amplifier featuring a low-noise pre-amplifier. Offers a 40MHz bandwidth and 300V/µs slew rate. Input voltage noise density is 3.5nV/sqrt Hz with 600kΩ input resistance and 1nA input bias current. Operates from a 4.75V to 5.25V supply, with a typical 5V operating voltage. Provides 25dB voltage gain and 50dB common mode rejection ratio. Packaged in a 48-TQFP, this RoHS compliant component operates from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments VCA2612Y/250 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 40MHz |
| Package/Case | TQFP |
| Common Mode Rejection Ratio | 50dB |
| Gain Bandwidth Product | 80MHz |
| Input Bias Current | 1nA |
| Input Resistance | 600kR |
| Input Voltage Noise Density | 3.5nV/sqrt Hz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 495mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | VCA2612 |
| Slew Rate | 300V/µs |
| Voltage Gain | 25dB |
| Weight | 0.004847oz |
| RoHS | Compliant |
