Analog specialty IC featuring a 168MHz -3dB bandwidth and 150MHz bandwidth. This single-channel circuit operates with a dual supply voltage range of 3.5V to 5V, and a single supply voltage from 7V to 12V. Key specifications include a 200MHz gain bandwidth product, 81dB PSRR, 86dB CMRR, and a 1700V/µs slew rate. Packaged in a 3mm x 3mm x 1.02mm VSSOP, this RoHS compliant component is supplied on tape and reel.
PackageVSSOP
Current38mA
Quick Jump:
Technical Specifications
Texas Instruments VCA822IDGSTG4 technical specifications.
General
-3db Bandwidth
168MHz
Bandwidth
150MHz
Package/Case
VSSOP
Common Mode Rejection Ratio
86dB
Dual Supply Voltage
5V
Gain Bandwidth Product
200MHz
Height
1.02mm
Input Bias Current
25uA
Input Offset Voltage (Vos)
2.5mV
Lead Free
Contains Lead
Length
3mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
17mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
7V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
36mA
Operating Supply Voltage
12V
Output Current per Channel
160mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
81dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
1700V/µs
Supply Current
38mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
200MHz
Voltage Gain
40dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments VCA822IDGSTG4 Datasheet
Download the complete datasheet for Texas Instruments VCA822IDGSTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

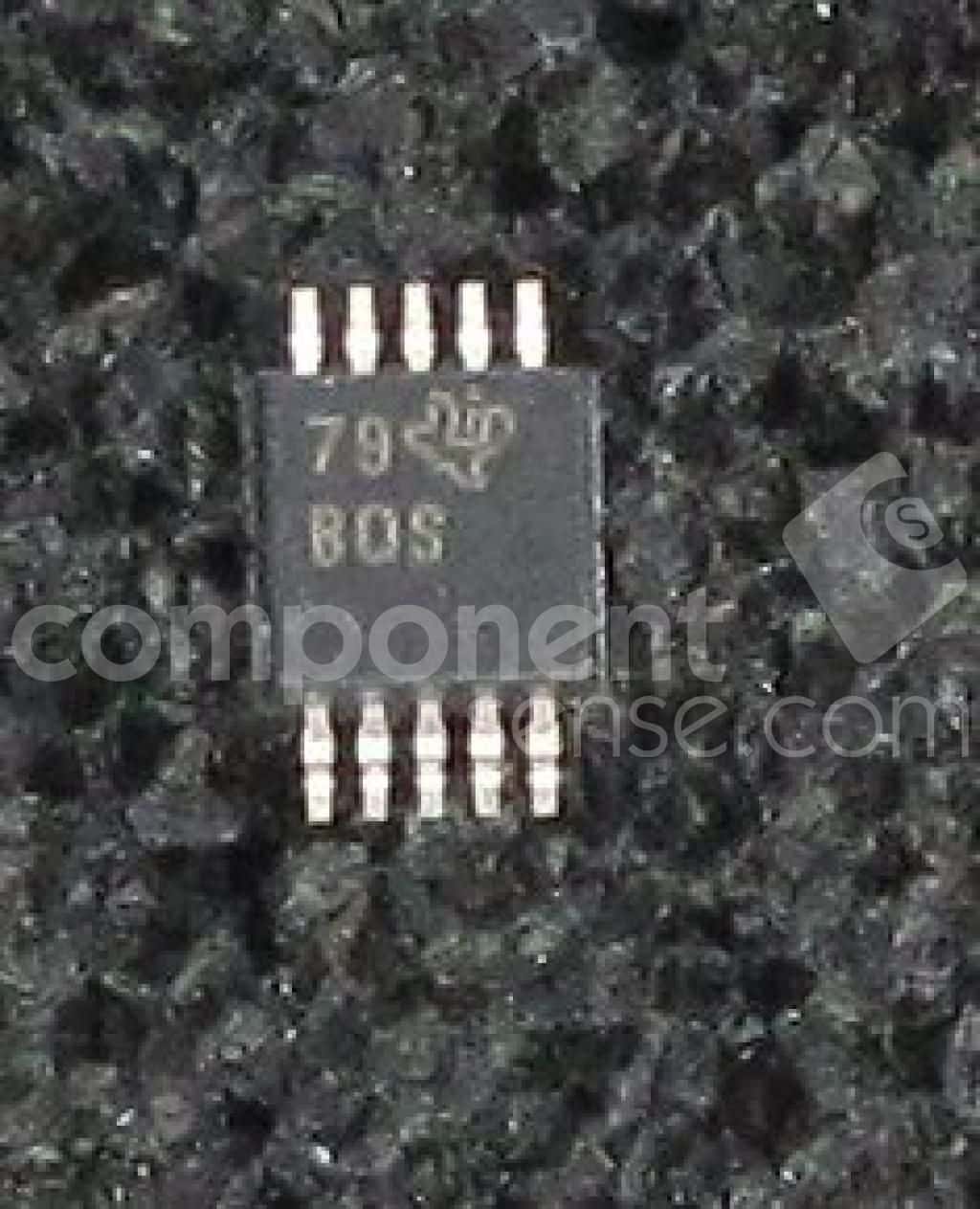

Product Images
