Texas Instruments
VSP5621RSLR
16 bit, 50MSPS Four Channel, CCD/CMOS Sensor Analog Front End with LED Driver 48-VQFN 0 to 85
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments VSP5621RSLR technical specifications.
General
Package/Case
VQFN
Conversion Rate
50MS/s
Interface
LVDS, Serial, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
406mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
16
Number of Channels
4
Number of Converters
1
Operating Supply Current
99.6mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
50000KS/s
Series
VSP5621
Signal to Noise Ratio (SNR)
76dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments VSP5621RSLR Datasheet
Download the complete datasheet for Texas Instruments VSP5621RSLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

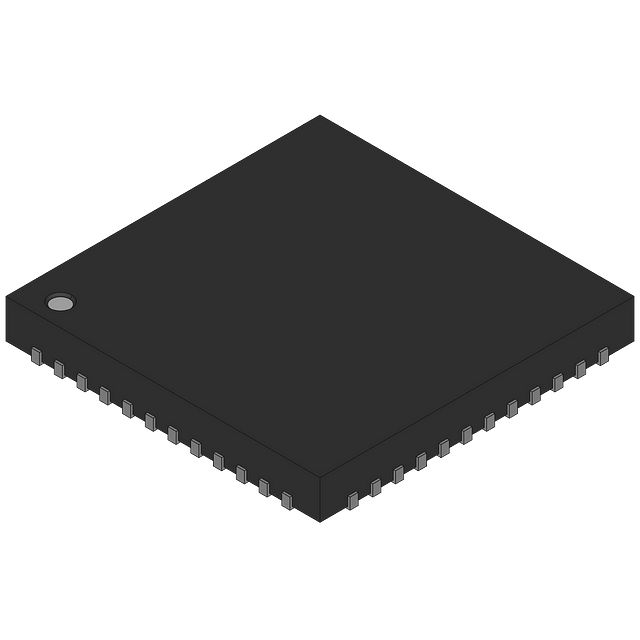

Product Images
