Combo wireless module supporting IEEE 802.11b/g/n WLAN and Bluetooth v4.0 (BLE) + EDR. Features 2.4GHz frequency operation with a data rate up to 54Mbps and a sensitivity of -96.3dBm. Operates with supply voltages from 2.9V to 4.8V, drawing 85mA during receiving and 420mA during transmitting. Interface options include SDIO and UART. This surface mount module is housed in a 100-pin LGA package measuring 13.5mm x 13.4mm x 2mm, with an operating temperature range of -20°C to 70°C.
Frequency2.4GHz
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments WL1801MODGBMOCT technical specifications.
General
Package/Case
Module
Current - Receiving
85mA
Current - Transmitting
420mA
Data Rate
54Mbps
Frequency
2.4GHz
Height
2mm
Interface
SDIO, UART
Lead Free
Contains Lead
Length
13.5mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Voltage
4.8V
Min Supply Voltage
2.9V
Mount
Surface Mount
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-96.3dBm
Series
WiLink™
Width
13.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments WL1801MODGBMOCT Datasheet
Download the complete datasheet for Texas Instruments WL1801MODGBMOCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

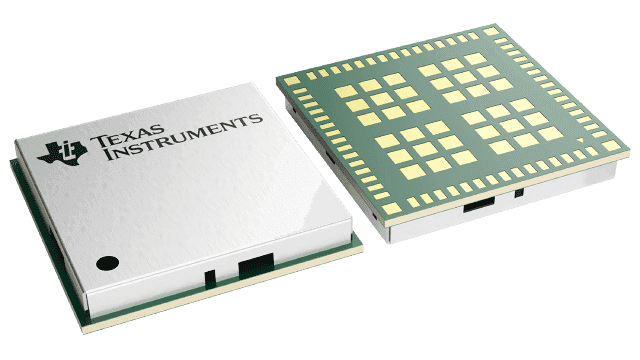

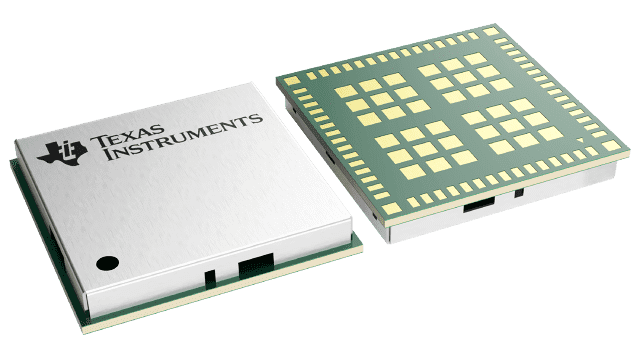

Product Images
