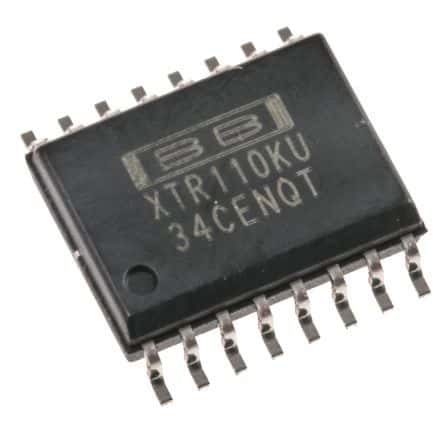

Sensor and detector interface IC featuring a single channel and one circuit. This surface mount component operates with a supply voltage range of 13.5V to 40V and offers an output current of 25mA. It includes two amplifiers and has a maximum operating temperature of 85°C. The device is housed in a 16-pin SOIC package with dimensions of 10.28mm length, 7.52mm width, and 2.35mm height. It is RoHS compliant and supplied in a rail/tube package.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments XTR110KU technical specifications.
General
Package/Case
SOIC
Height
2.35mm
Lead Free
Lead Free
Length
10.28mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
40V
Min Supply Voltage
13.5V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
1
Number of Circuits
1
Operating Supply Current
20mA
Output Current
25mA
Package Quantity
40
Packaging
Rail/Tube
Quiescent Current
3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.014829oz
Width
7.52mm
Compliance
RoHS
Compliant
