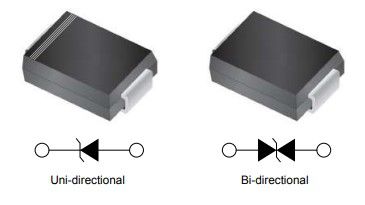

This is a surface-mount bidirectional TVS diode in the SMAJ series with a DO-214AC package. It is rated for 400 W peak pulse power dissipation and 58 V reverse standoff voltage. The breakdown voltage is specified from 64.4 V to 71.2 V, and the maximum clamping voltage is 93.6 V. Maximum peak pulse current is 4.3 A and maximum reverse leakage at stand-off voltage is 1 µA. The manufacturer search listing for the matched series variant shows it is not AEC-Q101 qualified.
Sign in to ask questions about the Thinking Electronic Industrial SMAJ58CA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Thinking Electronic Industrial SMAJ58CA technical specifications.
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| RoHS | Yes |
| REACH | unknown |
| Military Spec | False |
Download the complete datasheet for Thinking Electronic Industrial SMAJ58CA to view detailed technical specifications.
