The Toshiba 74VHC221AFT is a dual 14-stage binary counter integrated circuit. It features two independent circuits with a propagation delay of 9.6ns. The device is RoHS compliant and operates over a temperature range of -40°C to 85°C. The 74VHC221AFT is available in a 16-pin TSSOP package, mounted on a surface mount and packaged in cut tape. The quiescent current is 4uA, and the high and low level output currents are 8mA each.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Toshiba 74VHC221AFT technical specifications.
General
| Package/Case | TSSOP |
| High Level Output Current | 8mA |
| Independent Circuits | 2 |
| Logic Function | Multivibrator |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Propagation Delay | 9.6ns |
| Quiescent Current | 4uA |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 74VHC |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba 74VHC221AFT Datasheet
Download the complete datasheet for Toshiba 74VHC221AFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

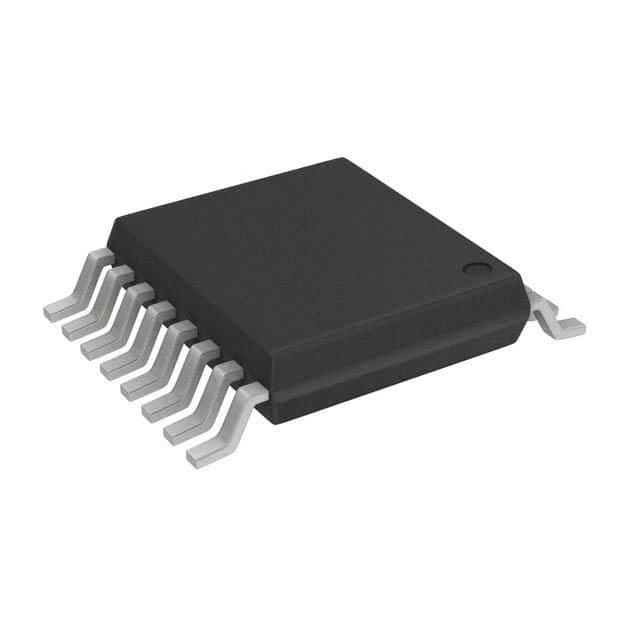

Product Images
