Technical Specifications
Toshiba SSM3K333R,LF technical specifications.
General
| Package/Case | SOT-23-3 |
| Continuous Drain Current (ID) | 6A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 42mR |
| Drain to Source Voltage (Vdss) | 30V |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 436pF |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 1W |
| Rds On Max | 28mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba SSM3K333R,LF Datasheet
Download the complete datasheet for Toshiba SSM3K333R,LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

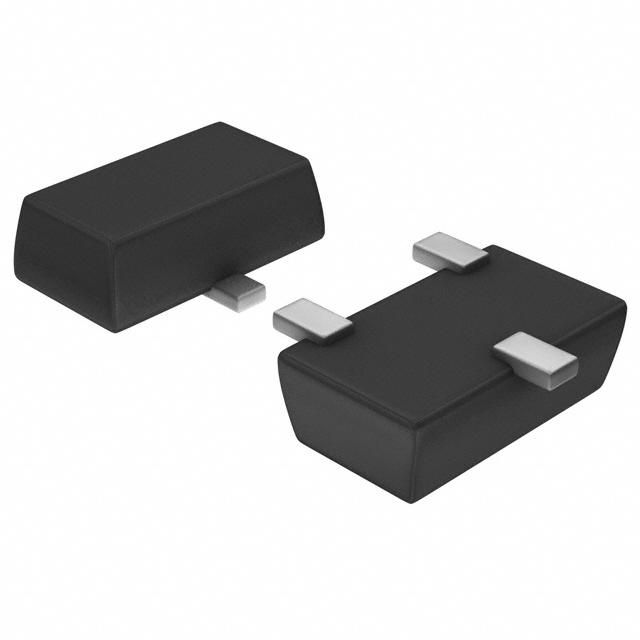

Product Images
