Toshiba
TC74HC14AFN
IC HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOL-14, Gate
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Toshiba TC74HC14AFN technical specifications.
General
Package/Case
SOIC
High Level Output Current
5.2mA
Lead Free
Contains Lead
Logic Function
Buffer, Inverter
Low Level Output Current
5.2mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
6
Number of Gates
6
Number of Inputs
1
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
21ns
Quiescent Current
1uA
RoHS Compliant
Yes
Series
74HC
Compliance
RoHS
Compliant
Datasheet
Toshiba TC74HC14AFN Datasheet
Download the complete datasheet for Toshiba TC74HC14AFN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

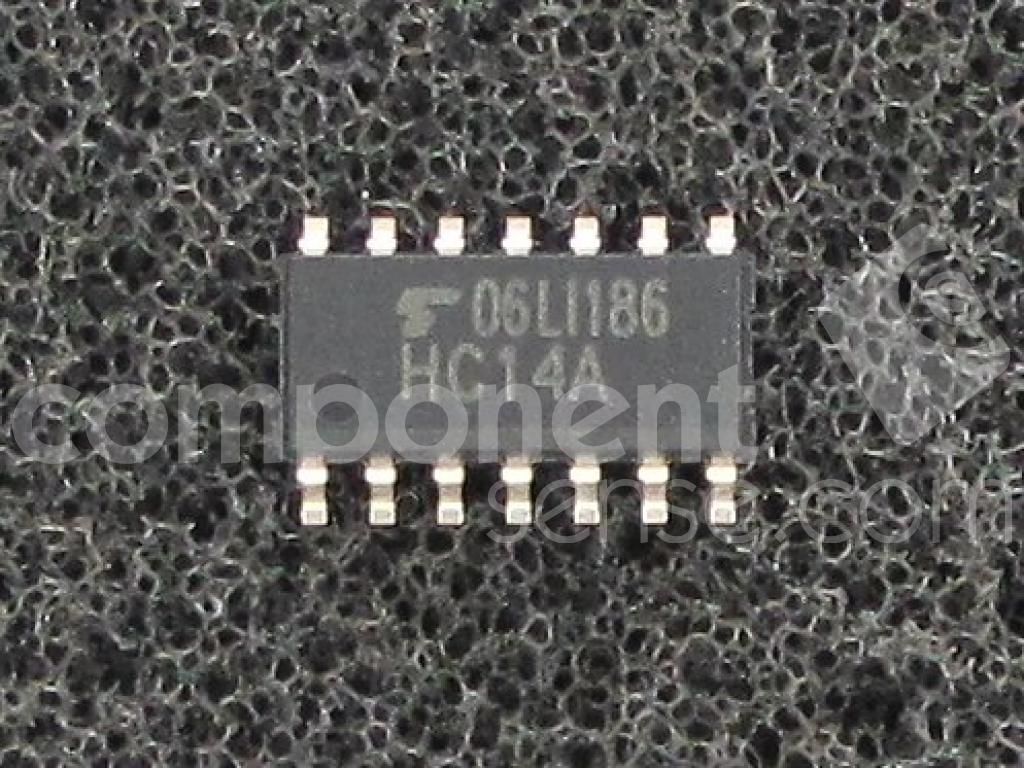

Product Images
