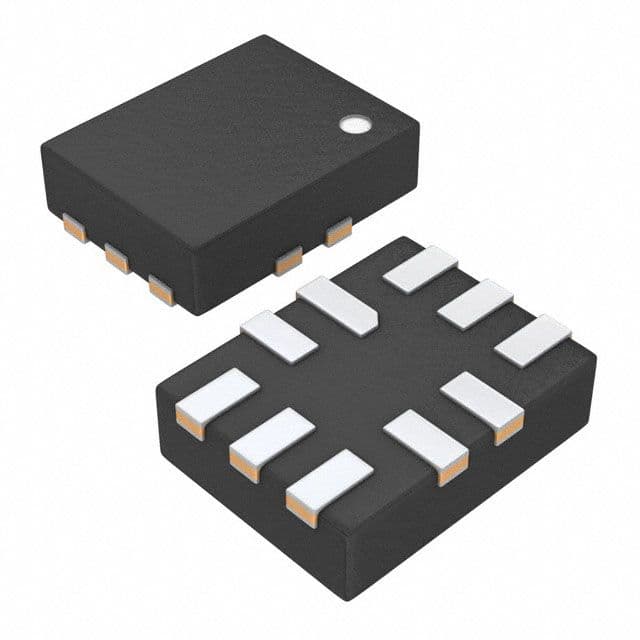

The Toshiba TC7USB42MU,LF is a single-supply SPDT switch with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum power dissipation of 200mW and operates on a supply voltage between 2.3V and 4.3V. The switch has an on-state resistance of 14R and an operating supply current of 1uA. It is available in a surface mount package and is packaged in tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Toshiba TC7USB42MU,LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Toshiba TC7USB42MU,LF technical specifications.
| Bandwidth | 1.5GHz |
| Height | 0.5mm |
| Length | 1.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| On-State Resistance | 14R |
| Operating Supply Current | 1uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Series | TC7USB42 |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Weight | 0.000353oz |
| Width | 1.4mm |
| RoHS | Compliant |
