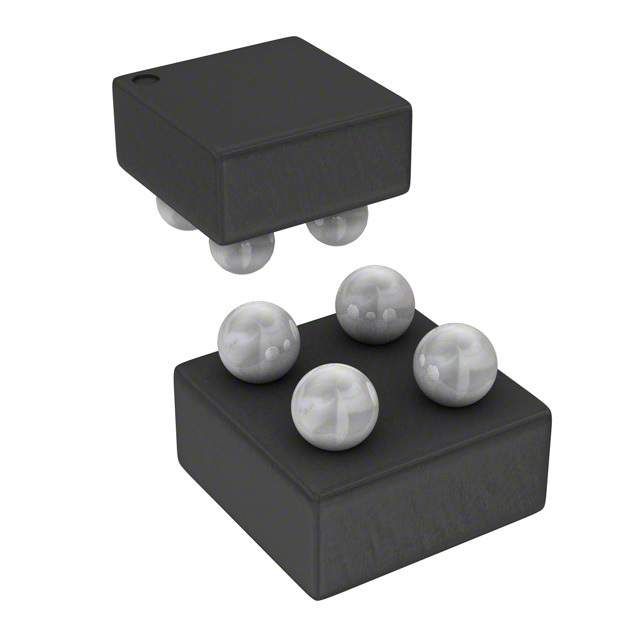

The TCR2DG18,LF is a 1.8V fixed linear voltage regulator with an accuracy of 1%. It can handle a maximum power dissipation of 800mW and has a maximum output current of 200mA. The device is designed for surface mount applications and has a maximum operating temperature range of -40°C to 85°C. It draws an operating supply current of 45uA and a quiescent current of 70uA when not in use.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Toshiba TCR2DG18,LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Toshiba TCR2DG18,LF technical specifications.
| Accuracy | 1% |
| Dropout Voltage | 104mV |
| Input Bias Current | 70uA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Power Dissipation | 800mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 45uA |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 70uA |
| Radiation Hardening | No |
| RoHS | Compliant |
