Surface mount linear voltage regulator IC providing a stable 3.3V output with a maximum output current of 200mA. Features a low dropout voltage of 150mV and operates from a supply voltage range of 1.5V to 5.5V. Designed for efficient power management with a nominal supply current of 35µA. This single-channel regulator is suitable for applications requiring precise voltage regulation within an operating temperature range of -40°C to 85°C, packaged in cut tape.
MountingSurface Mount
Quick Jump:
Technical Specifications
Toshiba TCR2EF33,LM(CT technical specifications.
General
| Dropout Voltage | 150mV |
| Height | 1.4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 35uA |
| Number of Channels | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Voltage | 3.3V |
| Packaging | Cut Tape |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TCR2EF33,LM(CT Datasheet
Download the complete datasheet for Toshiba TCR2EF33,LM(CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

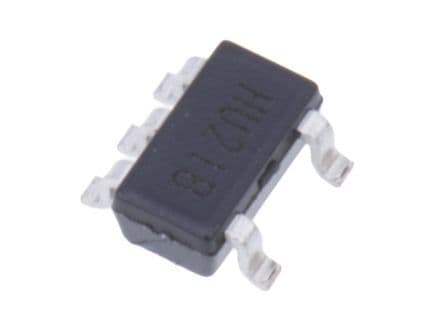

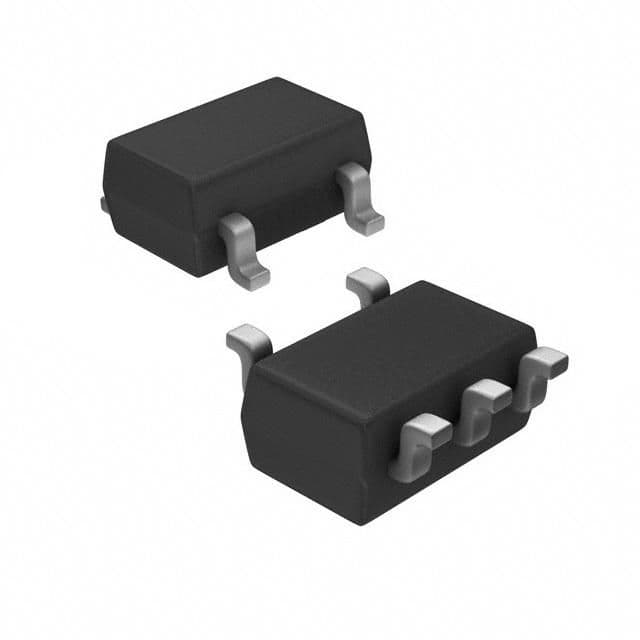

Product Images
