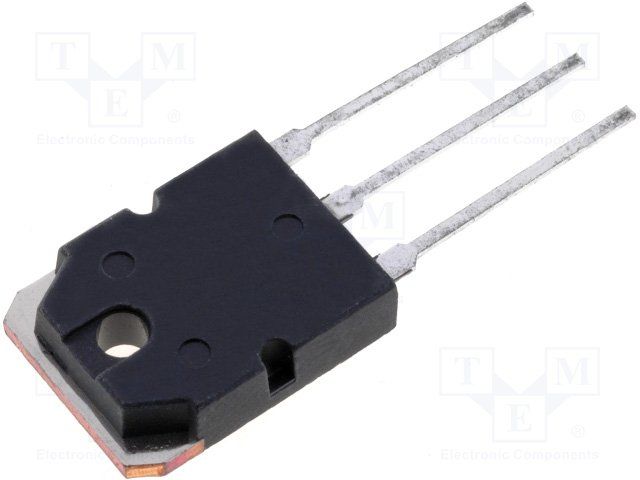

The TK9J90E,S1E(S MOSFET has a continuous drain current of 9A and a power dissipation of 250W. It can operate at temperatures between -55°C and 150°C. The device has a fall time of 35ns and turn-on and turn-off delay times of 80ns and 140ns, respectively. It is available in a through-hole package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Toshiba TK9J90E,S1E(S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Toshiba TK9J90E,S1E(S technical specifications.
| Continuous Drain Current (ID) | 9A |
| Fall Time | 35ns |
| Gate to Source Voltage (Vgs) | 30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Power Dissipation | 250W |
| Turn-Off Delay Time | 140ns |
| Turn-On Delay Time | 80ns |
| RoHS | Compliant |
Download the complete datasheet for Toshiba TK9J90E,S1E(S to view detailed technical specifications.
