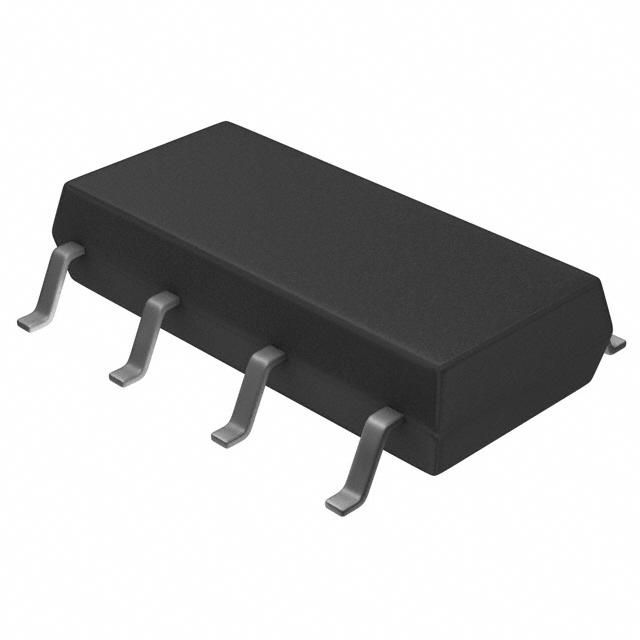

Solid State Relay (SSR) with AC & DC Output, featuring a Single Pole Single Throw (SPST) configuration. Offers a load current of 120mA at up to 350V output voltage. Operates with a DC input current of 50mA and a maximum input voltage of 1.3V. Provides 1.5kV isolation voltage and is surface mountable in an SOP package with gull wing termination. Rated for operation between -40°C and 85°C, this RoHS compliant component includes two channels.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Toshiba TLP4026G(F) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Toshiba TLP4026G(F) technical specifications.
| Package/Case | SOP |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Output Current | 120mA |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TLP4026G |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| RoHS | Compliant |
Download the complete datasheet for Toshiba TLP4026G(F) to view detailed technical specifications.
