Technical Specifications
Toshiba TMPM362F10FG(C) technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Interface | I2C, SPI, SSP, UART, USART, EBI/EMI |
| Max Frequency | 64MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1MB |
| Memory Type | FLASH, ROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of ADC Channels | 16 |
| Number of I/Os | 104 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | External |
| Package Quantity | 1 |
| Packaging | Tray |
| Peripherals | WDT, DMA |
| RAM Size | 64KB |
| Series | TX03 |
| Weight | 0.045518oz |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TMPM362F10FG(C) Datasheet
Download the complete datasheet for Toshiba TMPM362F10FG(C) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

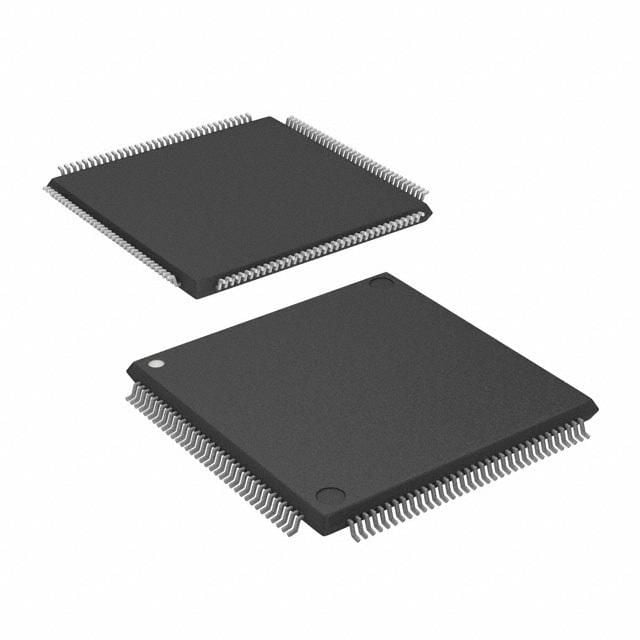

Product Images
