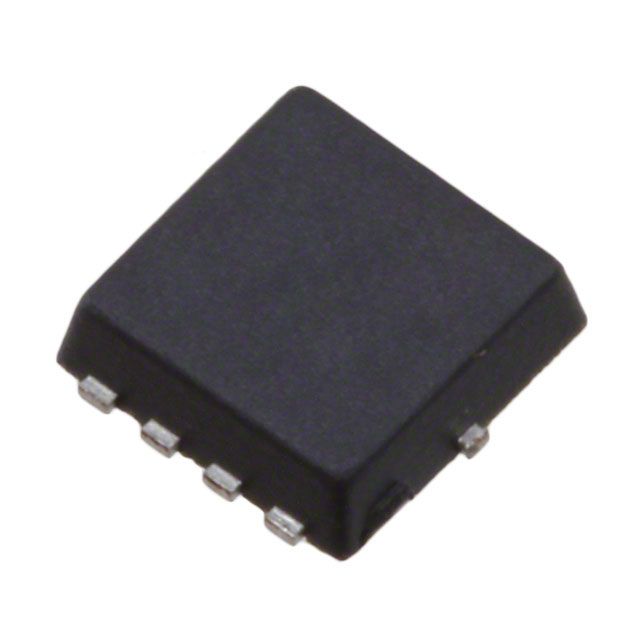

Toshiba TPN3300ANH,LQ technical specifications.
| Capacitance | 6.8E-10F |
| Continuous Drain Current (ID) | 9.4A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 28mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 3.8ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 880pF |
| Max Power Dissipation | 27W |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 27W |
| Rds On Max | 33mR |
| Turn-Off Delay Time | 15ns |
| RoHS | Compliant |
