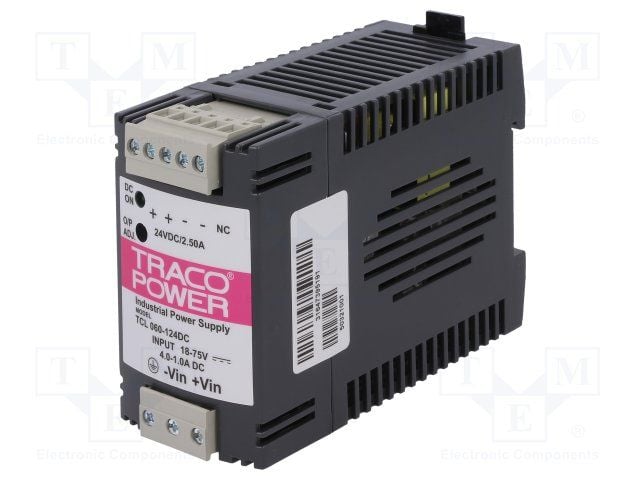

Enclosed AC/DC power supply, 60W output power, 2.5A output current, and 24V nominal output voltage. Features isolated DC/DC conversion with 1.5kV isolation voltage. Operates from an 18V to 75V DC input voltage range, with a maximum input voltage of 75V. Offers 86% efficiency and a wide operating temperature range of -25°C to 70°C. Module package with dimensions of 100mm length, 45mm width, and 45mm depth. Mountable via DIN rail or wall, weighing 265g. RoHS compliant.
PackageModule
MountingDIN Rail, Wall
Power60W
Quick Jump:
Technical Specifications
Traco Power TCL060-124DC technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 2.5A |
| Depth | 45mm |
| Efficiency | 86% |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Length | 100mm |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 75V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Max Output Voltage | 28V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 60W |
| Mount | DIN Rail, Wall |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 75V |
| Output Current | 2.5A |
| Output Power | 60W |
| Output Voltage | 24V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TCL-DC (24 ~ 60W) |
| Voltage - Output 1 | 24V |
| Weight | 265g |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TCL060-124DC Datasheet
Download the complete datasheet for Traco Power TCL060-124DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
