Isolated board mount DC/DC converter, DIP package, through-hole mounting. Features dual outputs with 12V and -12V nominal voltages, each delivering up to 83mA. Operates with an input voltage range of 18V to 36V DC, supporting a 24V nominal input. Offers 1.6kV isolation voltage and 84% efficiency, with a maximum output power of 2W. Includes short-circuit protection (SCP) and operates across a temperature range of -40°C to 85°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TDR2-2422 technical specifications.
General
| Current - Output 1 | 83mA |
| Current - Output 2 | 83mA |
| Depth | 18.9mm |
| Efficiency | 84% |
| Features | SCP |
| Height | 8.7mm |
| Isolation Voltage | 1.6kV |
| Length | 18.9mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 83mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Nominal Output Voltage | -12V |
| Number of Outputs | 2 |
| Output Current | 83mA |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TDR 2 (2W) |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TDR2-2422 Datasheet
Download the complete datasheet for Traco Power TDR2-2422 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

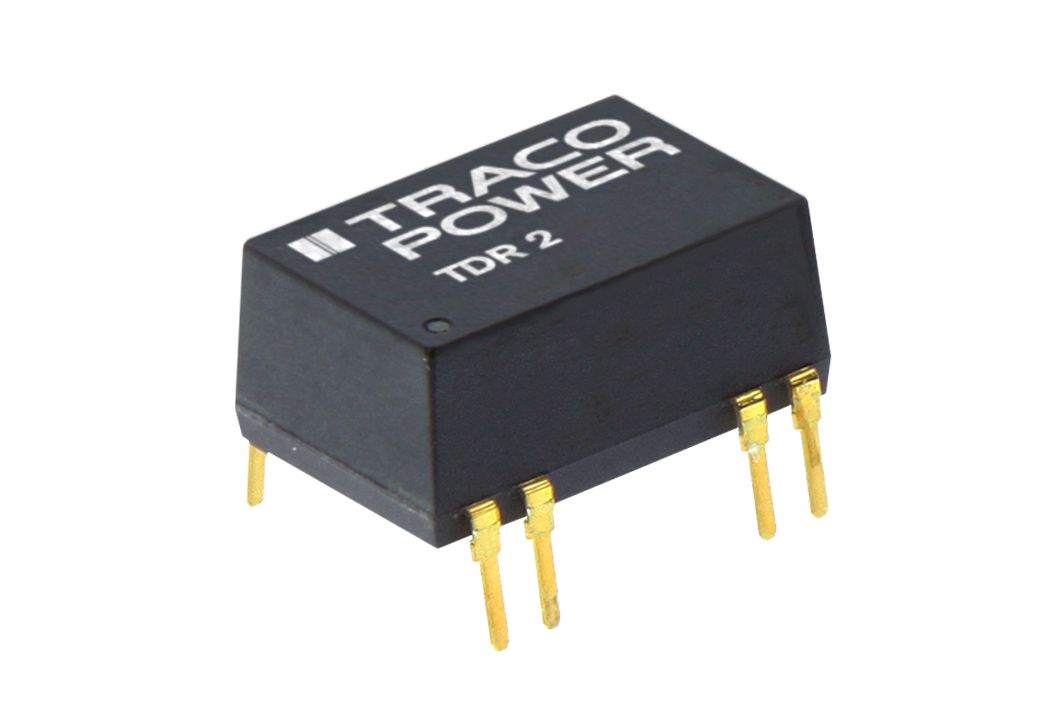

Product Images
