Board mount DC/DC converter with 2W output power, delivering a 5VDC nominal output voltage from a 9-18VDC input range. Features 400mA maximum output current and 1.5kV isolation. Operates efficiently at 77% with a wide temperature range of -40°C to 75°C. Packaged in a DIP form factor for through-hole mounting, this isolated converter includes short-circuit protection.
PackageDIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Traco Power TEL2-1211 technical specifications.
General
Package/Case
DIP
Current - Output 1
400mA
Depth
23.8mm
Efficiency
77%
Features
SCP
Height
7.2mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
23.8mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
400mA
Output Power
2W
Output Voltage
5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEL 2 (2W)
Voltage - Output 1
5V
Weight
5.1g
Width
13.7mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEL2-1211 Datasheet
Download the complete datasheet for Traco Power TEL2-1211 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

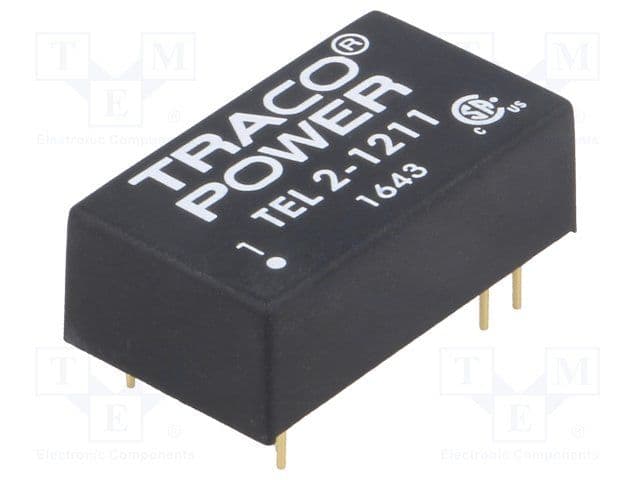

Product Images
