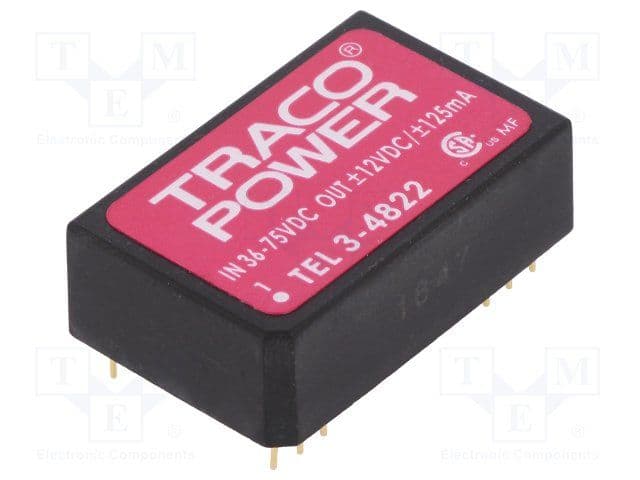

Isolated board mount DC/DC converter, 3W max output power, featuring dual outputs of +12V at 125mA and -12V at 125mA. Operates with a 36V to 75V DC input range, nominal 48V, and provides 1.5kV isolation. Achieves 81% efficiency and is rated UL94 V-0 flammability. Through-hole mounting, dimensions 32mm x 20mm x 10.2mm, operating temperature range -40°C to 85°C. RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TEL3-4822 technical specifications.
General
Current - Output 1
125mA
Current - Output 2
125mA
Depth
32mm
Efficiency
81%
Flammability Rating
UL94 V-0
Height
10.2mm
Isolation Voltage
1.5kV
Length
32mm
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
36V
Max Input Voltage
75V
Min Input Voltage
36V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
3W
Mount
Through Hole
Nominal Input Voltage
48V
Number of Outputs
2
Output Current
125mA
Output Voltage
12V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEL 3
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
12g
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEL3-4822 Datasheet
Download the complete datasheet for Traco Power TEL3-4822 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
