Isolated DC/DC converter with 30W output power and 12V nominal output voltage. Features a 2.5A maximum output current, 18-75 VDC input voltage range, and 90% efficiency. Encased in metal with through-hole mounting, this component offers 1.5kV isolation and operates across a -40°C to 75°C temperature range.
PackageMetal
MountingThrough Hole
Power30W
Quick Jump:
Technical Specifications
Traco Power TEN30-4812WIN technical specifications.
General
| Package/Case | Metal |
| Current - Output 1 | 2.5A |
| Depth | 50.8mm |
| Efficiency | 90% |
| Height | 10.2mm |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Length | 25.4mm |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 75V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Output Power | 30W |
| Mount | Through Hole |
| Nominal Input Voltage | 48V |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 30W |
| Output Voltage | 12V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 30WIN |
| Voltage - Output 1 | 12V |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TEN30-4812WIN Datasheet
Download the complete datasheet for Traco Power TEN30-4812WIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

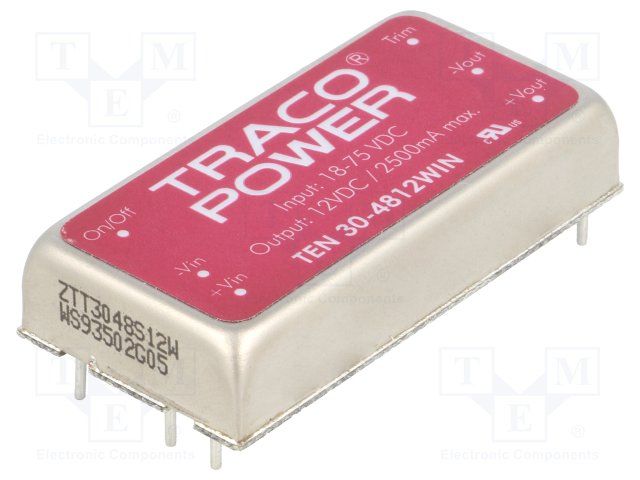

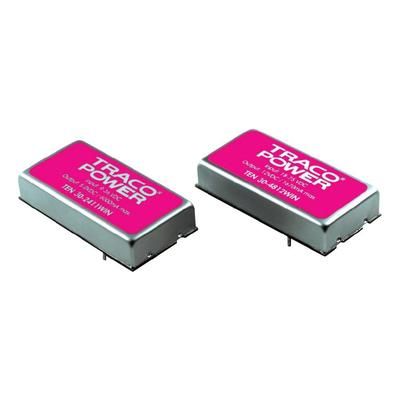

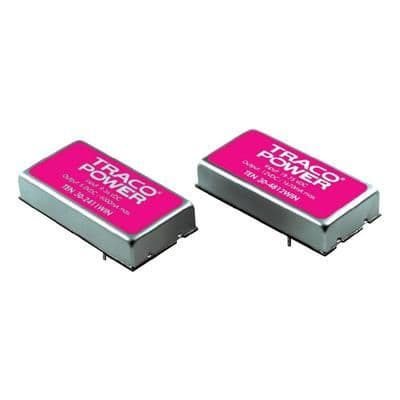

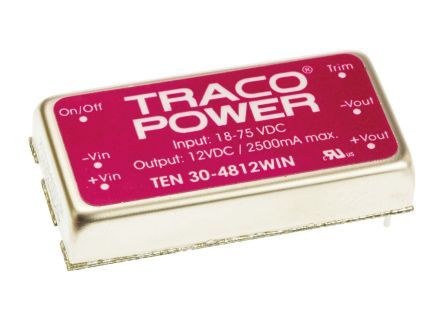

Product Images
