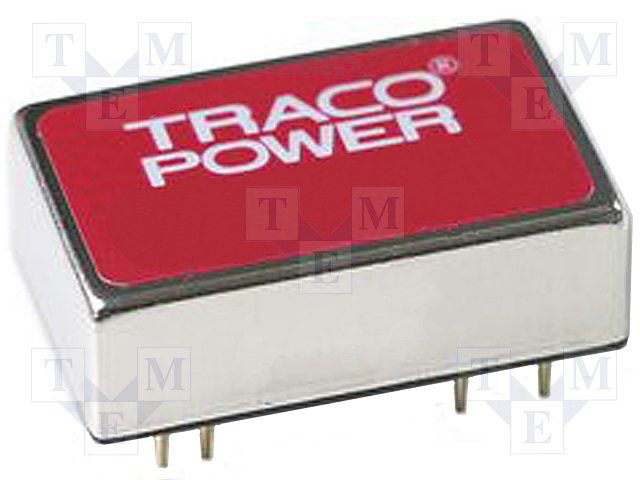

Board mount DC-DC converter module, 6W, 2 isolated outputs, 5V and -5V, each with 500mA current. Features short circuit protection (SCP), 1.5kV isolation, and operates from an 18-36VDC input range with a nominal 24V. This hybrid module offers 83% efficiency and a wide operating temperature range of -40°C to 85°C, housed in a compact DIP package.
PackageModule
MountingThrough Hole
Power6W
Quick Jump:
Technical Specifications
Traco Power TEN5-2421 technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 500mA |
| Current - Output 2 | 500mA |
| Depth | 20mm |
| Efficiency | 83% |
| Features | SCP |
| Height | 10.2mm |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Length | 32mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Power | 6W |
| Max Power Dissipation | 5W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 500mA |
| Output Power | 6W |
| Output Voltage | 5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 5 (6W) |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Weight | 16.9g |
| Width | 20.3mm |
