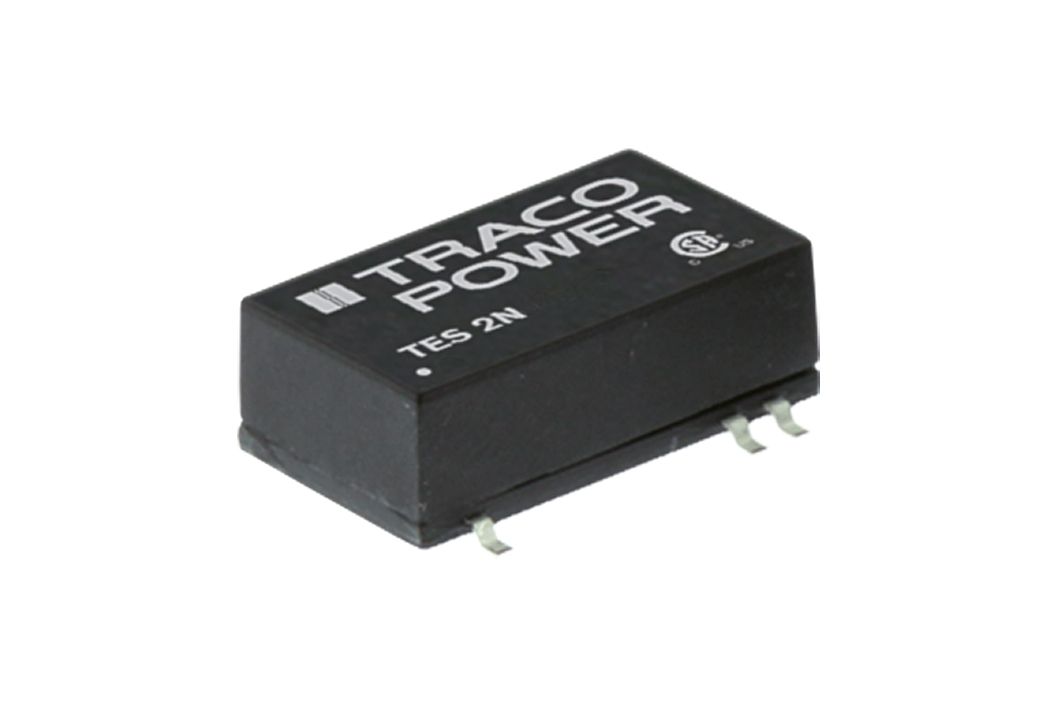

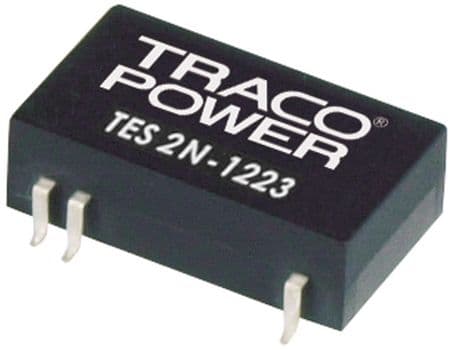

Board mount DC/DC converter with 2W maximum output power. Features dual 15V and -15V outputs, each delivering 65mA. Operates from an 18-36VDC input range with 78% efficiency. Offers 1.5kV isolation and a compact SMD/SMT package. Suitable for surface mounting with dimensions of 24mm x 13.7mm x 8mm.
PackageSMD/SMT
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Traco Power TES2N-2423 technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 65mA |
| Current - Output 2 | 65mA |
| Depth | 13.7mm |
| Efficiency | 78% |
| Height | 8mm |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Length | 24mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 65mA |
| Max Output Power | 2W |
| Mount | Surface Mount |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 65mA |
| Output Power | 2W |
| Output Voltage | 15V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TES 2N |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 5.1g |
| Width | 13.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TES2N-2423 Datasheet
Download the complete datasheet for Traco Power TES2N-2423 to view detailed technical specifications.
