Board mount DC-DC converter, 6W, featuring dual 15V and -15V outputs, each with 200mA current capability. Achieves 87.5% efficiency and offers 5kV isolation voltage. Operates within a 4.5V to 9V DC input range and includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). Compact dimensions of 31.8mm x 20.3mm x 10.2mm and a weight of 14g, suitable for through-hole mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power THM6-0523WI technical specifications.
General
| Current - Output 1 | 200mA |
| Current - Output 2 | 200mA |
| Depth | 31.8mm |
| Efficiency | 87.5% |
| Features | OVP, OCP, SCP |
| Height | 10.2mm |
| Isolation Voltage | 5kV |
| Length | 31.8mm |
| Max Input Voltage (DC) | 9V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 9V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Output Current | 200mA |
| Output Voltage | 15V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | THM 6WI (6W) |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 14g |
| Width | 20.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power THM6-0523WI Datasheet
Download the complete datasheet for Traco Power THM6-0523WI to view detailed technical specifications.
No datasheet is available for this part.

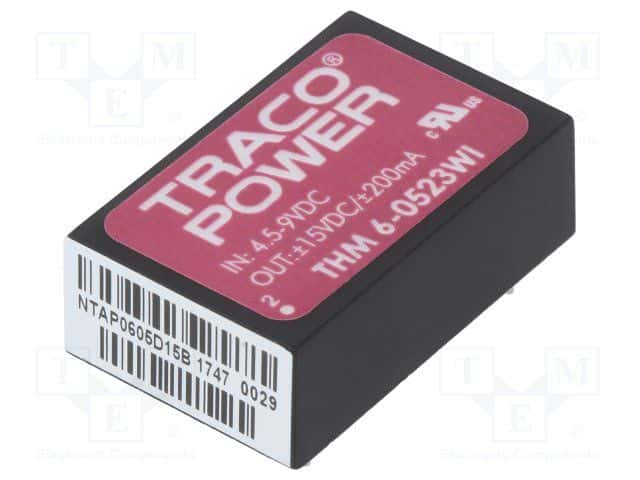

Product Images
