Technical Specifications
Traco Power THM6-4813WI technical specifications.
General
| Depth | 31.8mm |
| Efficiency | 89% |
| Features | OVP, OCP, SCP |
| Height | 10.2mm |
| Isolation Voltage | 5kV |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 75V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | THM 6WI (6W) |
| Voltage - Output 1 | 15V |
| Width | 20.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power THM6-4813WI Datasheet
Download the complete datasheet for Traco Power THM6-4813WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

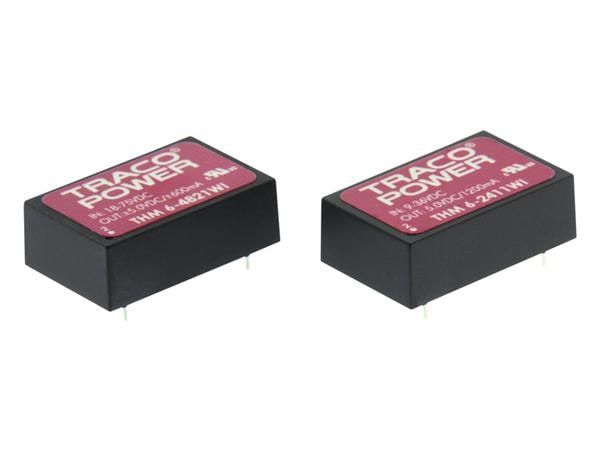

Product Images
