Board mount DC-DC converter, 1W output power, 5V regulated output voltage, and 200mA maximum output current. Features isolated operation with 1kV isolation voltage and a compact SIP package. Operates within a 10.8V to 13.2V DC input range, offering 73% efficiency. Includes short-circuit protection (SCP) and meets UL94 V-0 flammability rating.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Traco Power TMA1205S technical specifications.
General
Package/Case
SIP
Current - Output 1
200mA
Depth
19.5mm
Efficiency
73%
Features
SCP
Flammability Rating
UL94 V-0
Height
10.2mm
Isolation
Isolated
Isolation Voltage
1kV
Length
19.5mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
12V
Number of Outputs
1
Output Current
200mA
Output Power
1W
Output Voltage
5V
Power
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMA (1W)
Voltage - Output 1
5V
Weight
2.1g
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMA1205S Datasheet
Download the complete datasheet for Traco Power TMA1205S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

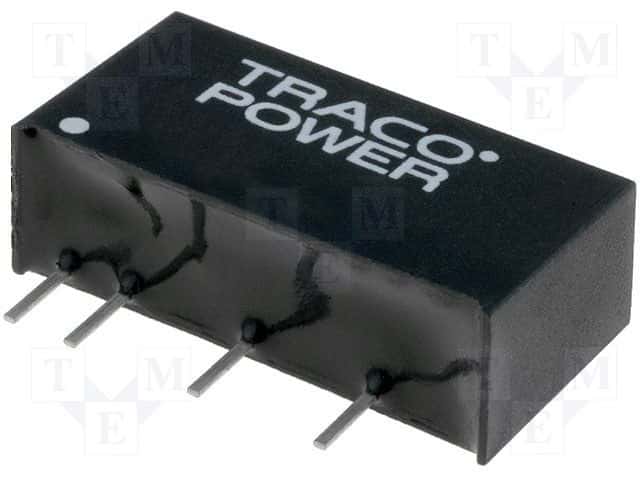

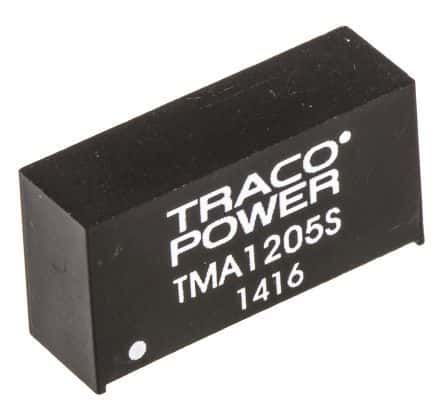

Product Images
