Board mount DC/DC converter with 1W output power, providing a regulated 5VDC output from a 24VDC nominal input. Features isolated design with 1kV isolation voltage, 200mA maximum output current, and 71% efficiency. Operates within a -40°C to 85°C temperature range and is housed in a SIP package with a UL94 V-0 flammability rating. Input voltage range is 21.6VDC to 26.4VDC.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Traco Power TMA2405S technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 200mA |
| Depth | 19.5mm |
| Efficiency | 71% |
| Flammability Rating | UL94 V-0 |
| Height | 10.2mm |
| Isolation | Isolated |
| Isolation Voltage | 1kV |
| Length | 19.5mm |
| Max Input Voltage (DC) | 26.4V |
| Min Input Voltage (DC) | 21.6V |
| Max Input Voltage | 26.4V |
| Min Input Voltage | 21.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 200mA |
| Output Power | 1W |
| Output Voltage | 5V |
| Power | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMA |
| Voltage - Output 1 | 5V |
| Weight | 2.1g |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TMA2405S Datasheet
Download the complete datasheet for Traco Power TMA2405S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

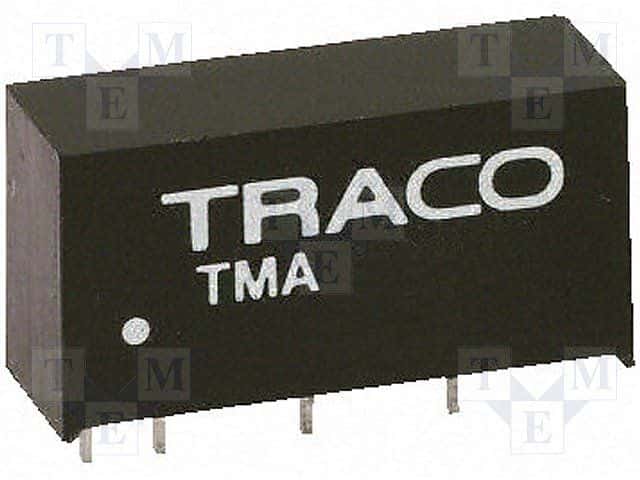

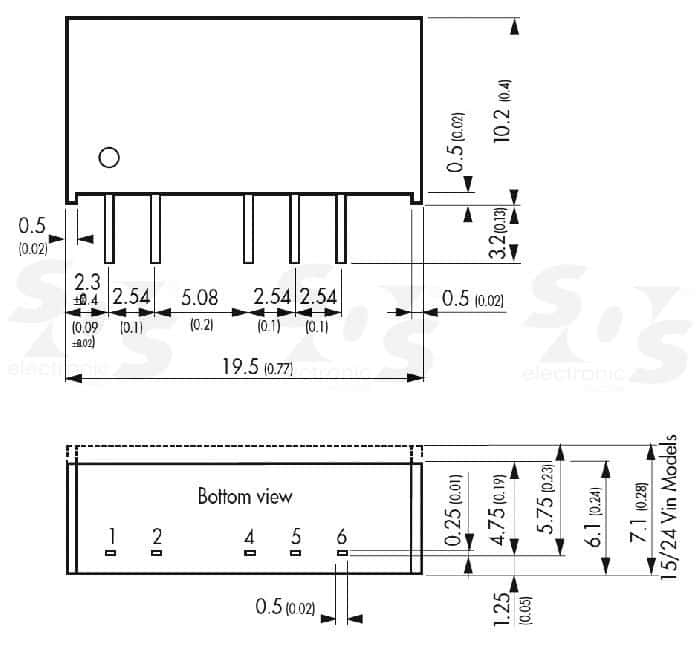

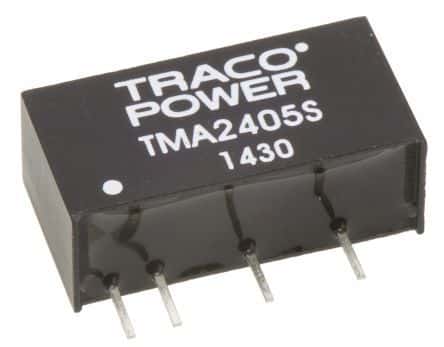

Product Images
