2W DC-DC converter module, SIP package, featuring dual 15V and -15V outputs, each delivering 65mA. This hybrid power supply operates with 82% efficiency, offering 1kV isolation and short-circuit protection (SCP). Designed for through-hole mounting, it functions within a -40°C to 85°C temperature range and meets UL94 V-0 flammability standards. The compact dimensions are 19.5mm x 7.5mm x 10.2mm, with a weight of 2.7g.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TMH1215D technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 65mA |
| Current - Output 2 | 65mA |
| Depth | 19.5mm |
| Efficiency | 82% |
| Features | SCP |
| Flammability Rating | UL94 V-0 |
| Height | 10.2mm |
| Isolation Voltage | 1kV |
| Length | 19.5mm |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 12V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 66mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Output Current | 65mA |
| Output Voltage | 15V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMH (2W) |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 2.7g |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TMH1215D Datasheet
Download the complete datasheet for Traco Power TMH1215D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

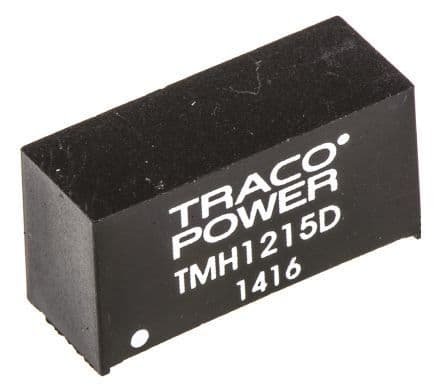

Product Images
