Isolated DC-DC converter module, 2W max output power, featuring dual 15V and -15V outputs, each capable of 65mA. This hybrid, plastic SIP-6/5 package board mount converter operates with a 21.6V to 26.4V DC input range, nominal 24V, and offers 1kV isolation. Achieving 82% efficiency, it functions across a -40°C to 85°C temperature range and is RoHS compliant. Dimensions are 19.5mm length, 7.5mm width, and 10.2mm height, with a weight of 2.7g.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Traco Power TMH2415D technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 65mA |
| Current - Output 2 | 65mA |
| Depth | 7.5mm |
| Efficiency | 82% |
| Height | 10.2mm |
| Isolation | Isolated |
| Isolation Voltage | 1kV |
| Length | 19.5mm |
| Max Input Voltage (DC) | 26.4V |
| Min Input Voltage (DC) | 21.6V |
| Max Input Voltage | 26.4V |
| Min Input Voltage | 21.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 65mA |
| Max Output Power | 2W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 65mA |
| Output Power | 2W |
| Output Voltage | 15V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TMH |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 2.7g |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TMH2415D Datasheet
Download the complete datasheet for Traco Power TMH2415D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

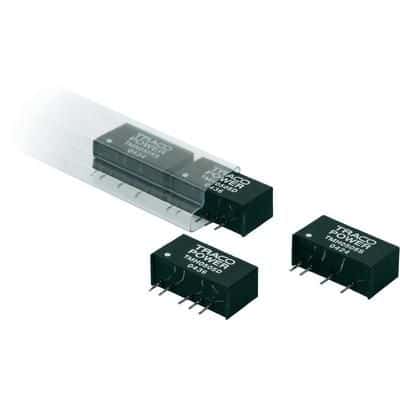

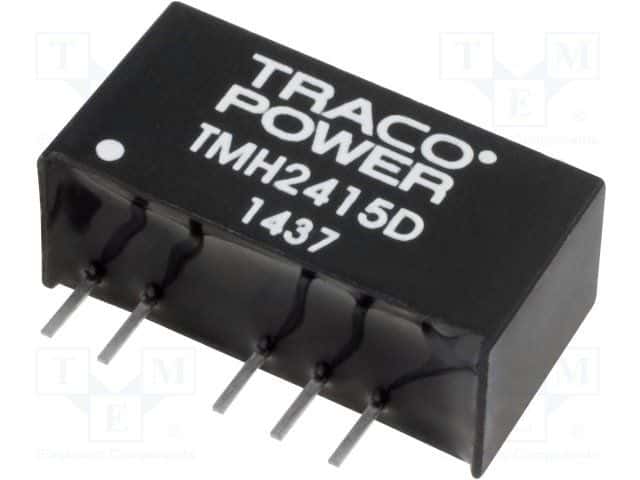

Product Images
