Isolated board mount DC/DC converter, 2W output power, featuring dual outputs of +12V at 85mA and -12V at 85mA. Input voltage range is 9V to 18V DC, with a nominal input of 12V DC. Achieves 83% efficiency and provides 1.6kV isolation. Housed in a SIP package with through-hole mounting, dimensions are 21.8mm (L) x 9.2mm (W) x 11.1mm (H). Operating temperature range is -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Traco Power TMR1222 technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 85mA |
| Current - Output 2 | 85mA |
| Depth | 9.2mm |
| Efficiency | 83% |
| Height | 11.1mm |
| Isolation | Isolated |
| Isolation Voltage | 1.6kV |
| Length | 21.8mm |
| Max Input Voltage (DC) | 18V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 18V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 83mA |
| Max Output Power | 2W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Number of Outputs | 2 |
| Output Current | 85mA |
| Output Power | 2W |
| Output Voltage | 12V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TMR 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 4.8g |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TMR1222 Datasheet
Download the complete datasheet for Traco Power TMR1222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

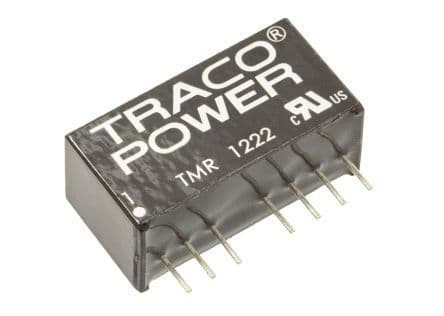

Product Images
