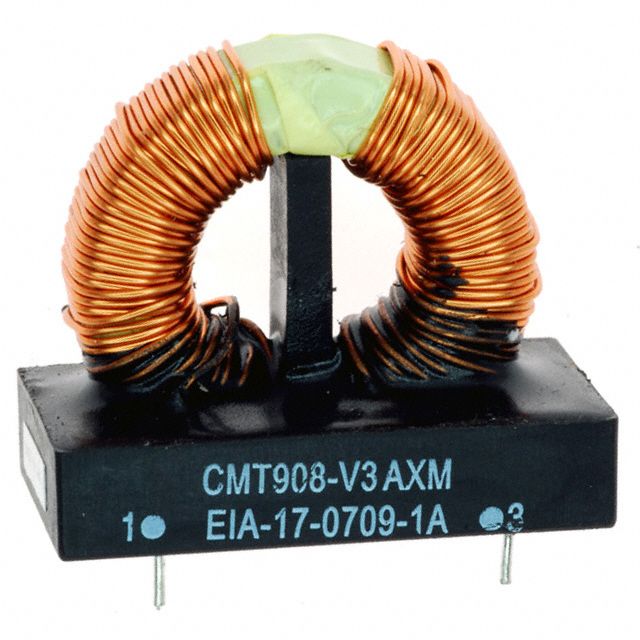

Dual-line common mode choke with 8mH inductance and 10% tolerance, rated for 3.2A maximum DC current. Features 0.12 Ohm DC resistance and a 1.5kV AC voltage rating. Operates across a -40°C to 125°C temperature range. Shielded, through-hole radial package with dimensions of 36.83mm L x 20.32mm W x 15.24mm H. Tested at 10kHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics CMT908-V3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Triad Magnetics CMT908-V3 technical specifications.
| Package/Case | Radial |
| Depth | 20.32mm |
| Height | 15.24mm |
| Inductance | 8mH |
| Inductance Tolerance | 10% |
| Length | 36.83mm |
| Max Current Rating | 3.2A |
| Max DC Current | 3.2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 126 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 0.12R |
| RoHS Compliant | Yes |
| Series | CMT |
| Shielding | Shielded |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 10% |
| Voltage Rating (AC) | 1.5kV |
| Weight | 1.584oz |
| Width | 20.32mm |
| RoHS | Compliant |
