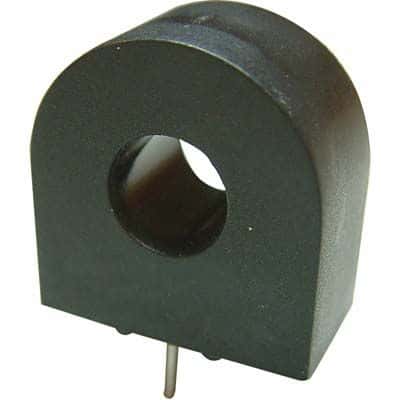

Current Transformer, 1000:1 turns ratio, designed for through-hole PCB mounting with PC pin termination. Features a 20A input current rating and 40 Ohm primary DC resistance. This component offers a 20,000mA primary current capacity and is UL approved, RoHS compliant, and lead-free. Dimensions include a 23.5mm length, 12mm width, and 24.8mm height.
Current Rating20A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Triad Magnetics CST-1020 technical specifications.
General
| Approvals | UL |
| Current Rating | 20A |
| DC Resistance (DCR) | 40R |
| Height | 24.8mm |
| Input Current | 20A |
| Lead Free | Lead Free |
| Length | 23.5mm |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CST |
| Termination | PC Pin |
| Turns Ratio | 1000:1 |
| Weight | 0.044lb |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics CST-1020 Datasheet
Download the complete datasheet for Triad Magnetics CST-1020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
