TRIAD MAGNETICS

CST206-2A

Datasheet

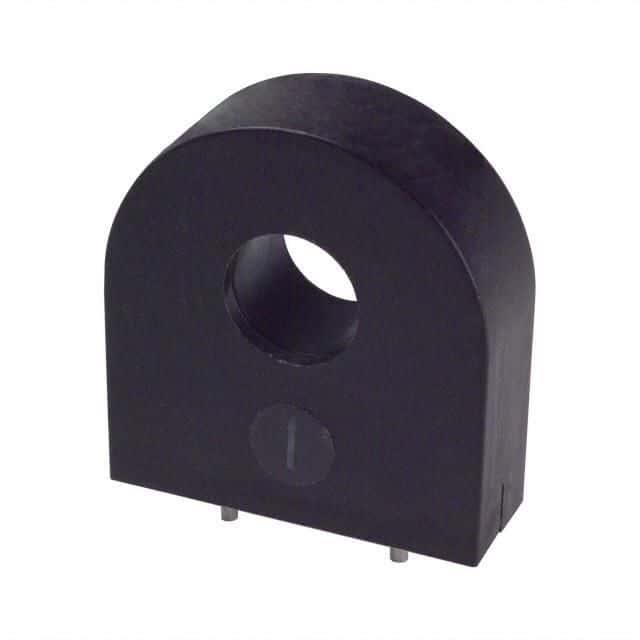

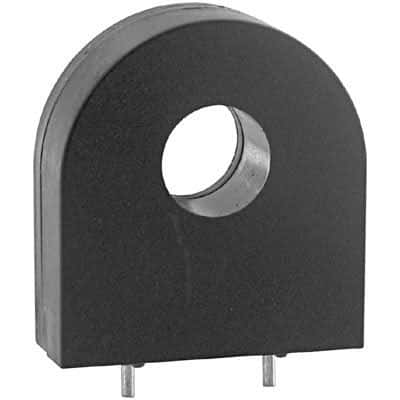

1:200 Current Sense Transformer, 80A, 200kHz, 56mH, 3.5R DCR, Thru-Hole

Triad Magnetics

CST206-2A

Name: CST206-2A Triad Magnetics
Brand: Triad Magnetics
SKU: CST206-2A

1:200 Current Sense Transformer, 80A, 200kHz, 56mH, 3.5R DCR, Thru-Hole

General purpose current transformer with a 1:200 turns ratio, rated for 80A input current. Features 3.5 Ohm primary DC resistance and 56mH primary inductance, operating across a 20 to 200 kHz frequency range. This through-hole component utilizes PC pin termination and is UL approved and RoHS compliant. Dimensions are 27.3mm length, 10.16mm width, and 31.12mm height.

Frequency200kHz

Current Rating80A

MountingThrough Hole, PCB

Inductance56mH

Quick Jump:

Technical Specifications

Triad Magnetics CST206-2A technical specifications.

General

Approvals	UL
Current Rating	80A
DC Resistance (DCR)	3.5R
Frequency	200kHz
Height	31.12mm
Inductance	56mH
Input Current	80A
Lead Free	Lead Free
Length	27.3mm
Mount	Through Hole, PCB
Number of Turns	200
Operating Frequency	20 to 200 kHz
Packaging	Bulk
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	CST
Termination	PC Pin
Turns Ratio	1:200
Weight	0.576oz
Width	10.16mm
