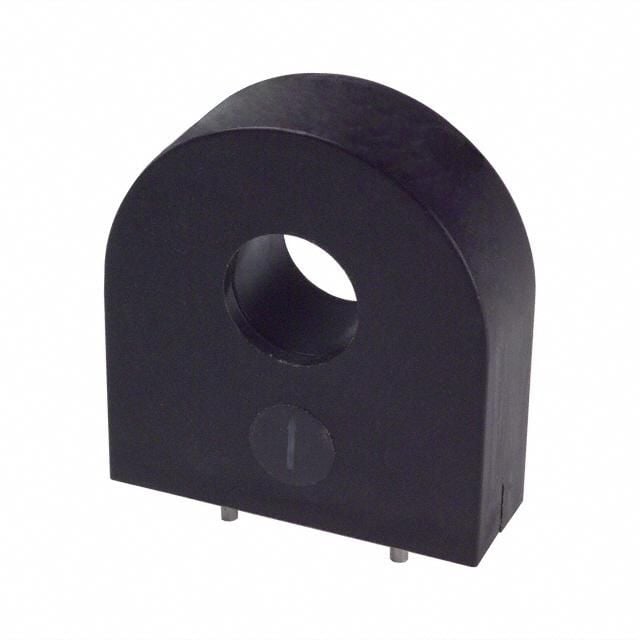

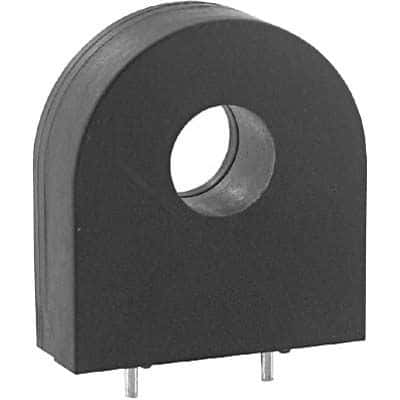

The CST206-3T is a current sense transformer from Triad Magnetics, approved to UL standards. It features a current rating of 70A and a DC resistance of 12.4 ohms. The transformer operates within a frequency range of 20 to 200 kHz and has a turns ratio of 1:300. It is packaged in bulk and is compliant with RoHS regulations. The CST206-3T is designed for through hole, PCB mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics CST206-3T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Triad Magnetics CST206-3T technical specifications.
| Approvals | UL |
| Current Rating | 70A |
| DC Resistance (DCR) | 12.4R |
| Frequency | 200kHz |
| Height | 31.12mm |
| Inductance | 130mH |
| Input Current | 70A |
| Lead Free | Lead Free |
| Length | 27.3mm |
| Mount | Through Hole, PCB |
| Operating Frequency | 20 to 200 kHz |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CST |
| Termination | PC Pin |
| Turns Ratio | 1:300 |
| Weight | 0.576oz |
| Width | 10.16mm |
| RoHS | Compliant |
