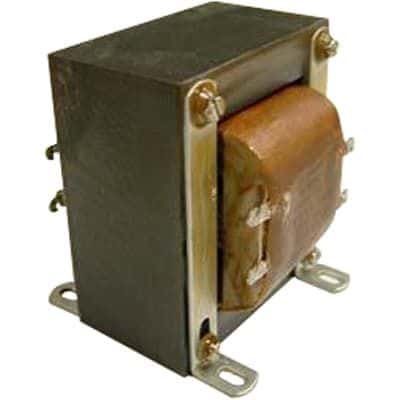

General purpose power transformer, 96VA, featuring dual primary and dual secondary windings. Delivers 24V output voltage with a 4A secondary current rating, and an 8A total output current capability. Designed for 50 Hz/60 Hz operation, this chassis-mount transformer operates from 0°C to 130°C and is RoHS compliant. Dimensions include a 2.5-inch height, 71.42mm length, and 63.5mm width, with solder termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics F-108U datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Current Rating | 8A |
| Height | 2.5inch |
| Height - Seated (Max) | 86.51mm |
| Lead Free | Lead Free |
| Length | 71.42mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 4A |
| Mount | Chassis Mount, Panel, Flanges, Chassis |
| Operating Frequency | 50 Hz/60 Hz |
| Output Current | 8A |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Primary Type | DUAL |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Current | 4A |
| Secondary Winding(s) | Dual |
| Series | Control Transformers |
| Termination | Solder |
| Weight | 3.5lb |
| Width | 63.5mm |
| RoHS | Compliant |
