Current Rating10A
MountingChassis Mount, Flanges
Quick Jump:
Technical Specifications
Triad Magnetics F-21A technical specifications.
General
| Current Rating | 10A |
| Height | 3.593inch |
| Height - Seated (Max) | 91.26mm |
| Lead Free | Lead Free |
| Length | 79.38mm |
| Max Output Current | 10A |
| Mount | Chassis Mount, Flanges |
| Output Current | 10A |
| Output Voltage | 6.3V |
| Primary Winding(s) | Single |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Single |
| Series | Single Secondary |
| Termination | Wire Leads |
| Weight | 3.8lb |
| Width | 3.125inch |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics F-21A Datasheet
Download the complete datasheet for Triad Magnetics F-21A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

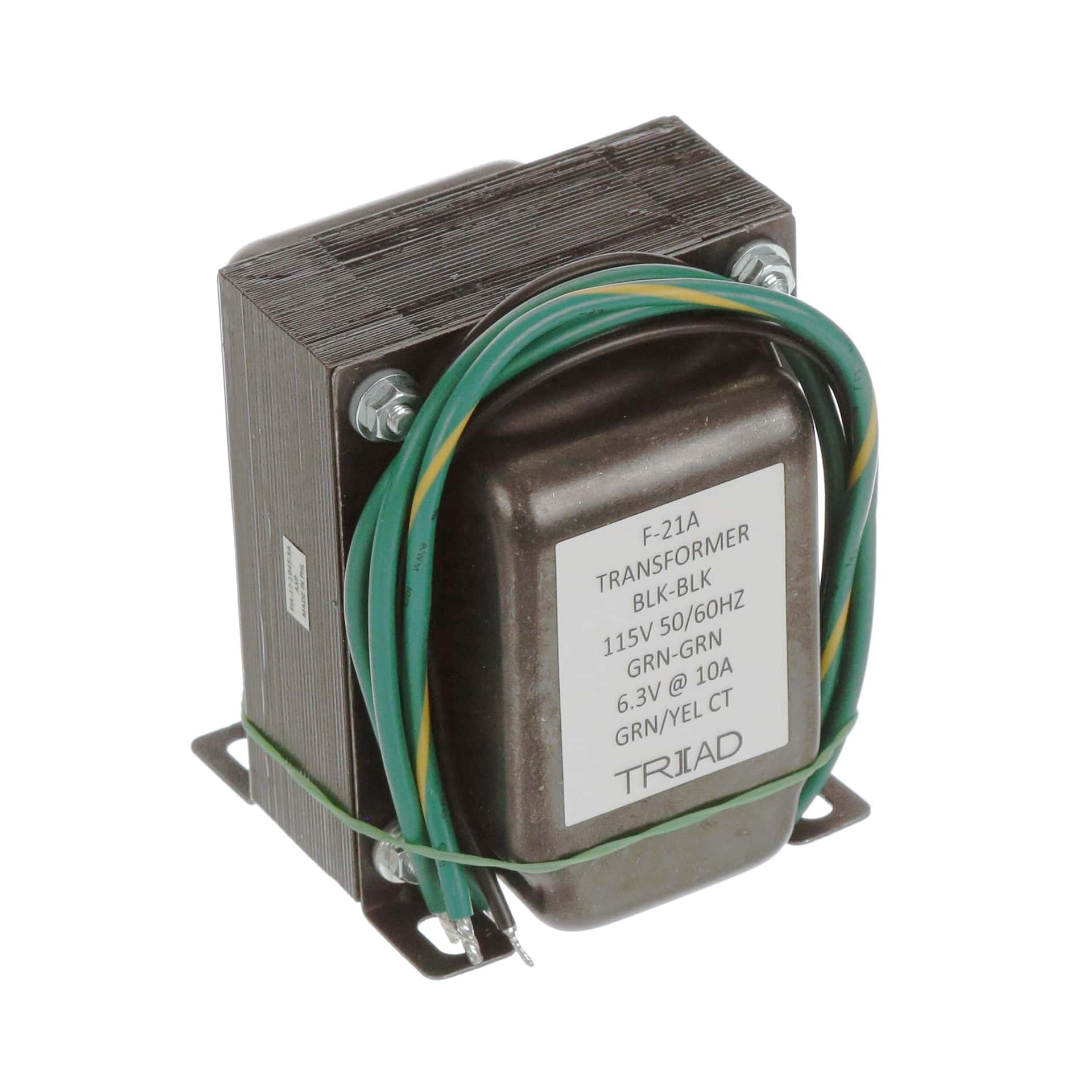

Product Images
