Current Rating1.9A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Triad Magnetics FP12-950 technical specifications.
General
| Approvals | UL |
| Current Rating | 1.9A |
| Height | 1.062inch |
| Height - Seated (Max) | 26.97mm |
| Lead Free | Lead Free |
| Length | 2.5inch |
| Max Output Current | 1.9A |
| Mount | Through Hole, PCB |
| Output Voltage | 6.3V |
| Package Quantity | 1 |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Flat Pack™ |
| Termination | PC Pin |
| Weight | 11oz |
| Width | 50.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Triad Magnetics FP12-950 Datasheet
Download the complete datasheet for Triad Magnetics FP12-950 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

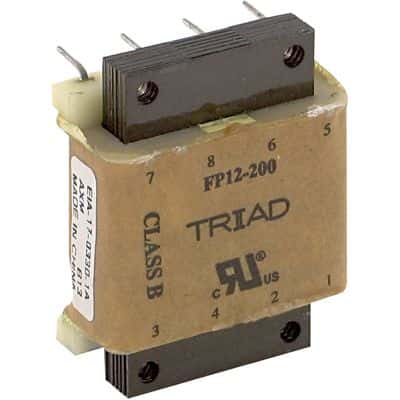

Product Images
