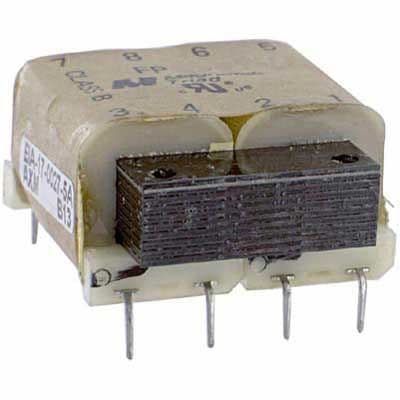

The FP16-375 is a dual-winding power transformer with a maximum output current of 375mA and an output voltage of 8V. It is designed for through-hole mounting on a PCB and has a height of 0.875inch. The transformer is RoHS compliant and has a weight of 0.438lb. It is packaged in a tray with 20 units per package and is approved by UL. The transformer is lead-free and does not contain any SVHC compliant materials.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Triad Magnetics FP16-375 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Current Rating | 750mA |
| Height | 0.875inch |
| Height - Seated (Max) | 22.22mm |
| Lead Free | Lead Free |
| Length | 47.63mm |
| Max Output Current | 375mA |
| Mount | Through Hole, PCB |
| Output Voltage | 8V |
| Package Quantity | 20 |
| Packaging | Tray |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | Flat Pack™ |
| Termination | PC Pin |
| Weight | 0.438lb |
| Width | 39.67mm |
| RoHS | Compliant |
