General purpose, 6VA split bobbin power transformer featuring dual primary and dual secondary windings. Delivers 24V output voltage with a 500mA output current capability. Designed for through-hole PCB mounting with PC pin termination. UL approved and lead-free, RoHS compliant construction.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Triad Magnetics FP24-250 technical specifications.
General
Approvals
UL
Height
0.875inch
Height - Seated (Max)
22.22mm
Lead Free
Lead Free
Length
47.63mm
Max Output Current
250mA
Mount
Through Hole, PCB
Output Current
500mA
Output Voltage
24V
Package Quantity
20
Packaging
Bulk
Primary Winding(s)
Dual
RoHS Compliant
Yes
Secondary Winding(s)
Dual
Series
Flat Pack™
Termination
PC Pin
Weight
0.438lb
Width
39.67mm
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics FP24-250 Datasheet
Download the complete datasheet for Triad Magnetics FP24-250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

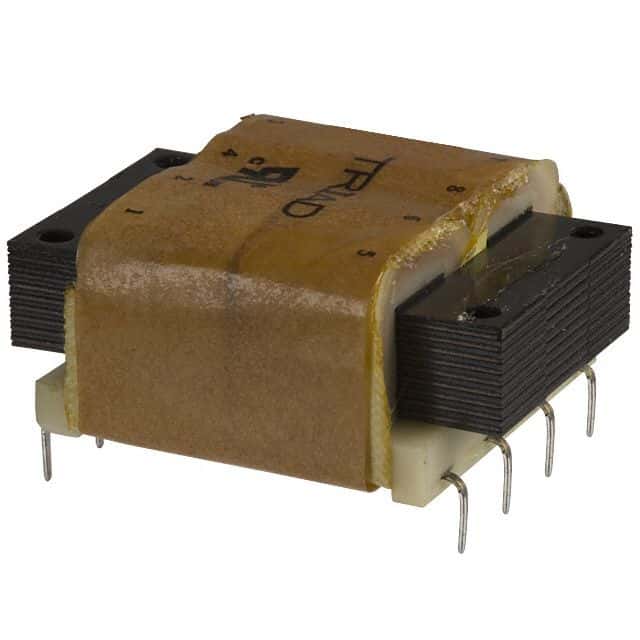

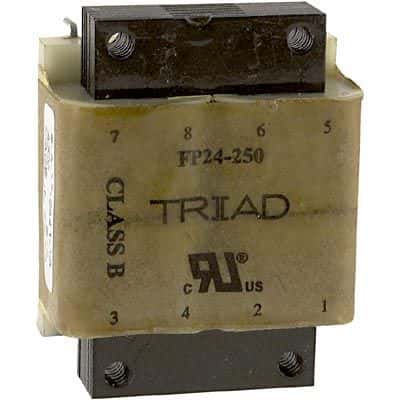

Product Images
